Polymer Additive

Loctite 3D IND147

Loctite 3D IND147 Black is a high-performance photopolymer resin designed for Carbon printers. Known for its high stiffness and temperature resistance, IND147 is a one-part resin that simplifies processing, saving time and reducing labor costs.

Download Spec Sheet

Material Overview

This versatile material is ideal for producing molds, fixtures, and manufacturing tools with smooth surfaces and precise dimensions, making it a go-to choice for applications in the industrial, consumer, and automotive sectors where high heat resistance is essential.

Key Features:

High Temperature Resistance: Built to withstand high-heat applications, perfect for parts exposed to elevated temperatures.
Stiffness: Provides excellent rigidity, ensuring stability in structural applications.
One-Part Resin: Simple to process, reducing time and labor for efficient, streamlined production.
Smooth Surface and Dimensional Precision: Produces parts with a refined finish and accurate dimensions, minimizing post-processing needs.

Color Option: Black

Property	ASTM	Metric Units
Tensile Strength	D638M	67 MPa
Modulus of Elasticity, Youngs Modulus	D638M	3,190 MPa
Elongation at Break (%)	D638M	2.4%
Flexural Strength	D790M	120 MPa
Flexural Modulus	D790M	3,690 MPa
IZOD Impact (notched)	D256A	14.6 ± 0.1 J/m2
Heat Deflection Temperature at .45 MPa/66 psi (°C)	D648	291 °C

DLS Technology

Digital Light Synthesis™ or DLS, is an innovative breakthrough in 3D printing using digital light projection together with oxygen permeable optics developed through Carbon’s CLIP™(Continuous Liquid Interface Production) technology.

Learn More

Applications

High-Temperature, Stiff, One-Part Resin

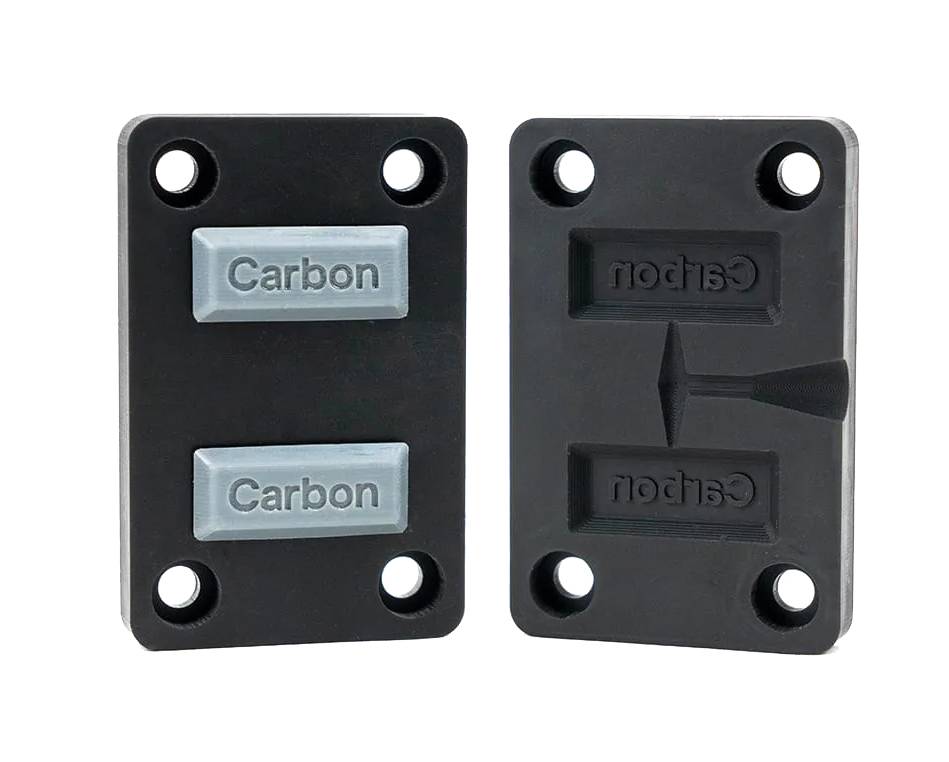

Molds: Suitable for creating high-temperature, low-pressure molds for materials like polyurethane and silicone, providing durability and precision in the mold-making process.
Baking Fixtures: Ideal for high-temperature baking fixtures that maintain part positioning during baking processes, ensuring accuracy and stability.

Advantages:

Ease of Use: As a one-part resin, IND147 offers simple, straightforward processing, saving time and labor in production.
Temperature and Stiffness Performance: Combines high heat resistance with rigidity, ensuring parts remain stable under high-stress, high-temperature conditions.
Smooth Finish and Precision: Delivers high-quality surface finishes and dimensional accuracy, reducing the need for extensive post-processing.
Versatile for Multiple Markets: Suitable for a range of applications in industrial, automotive, and consumer goods.

Disadvantages:

Limited Flexibility: Designed for stiffness and rigidity, IND147 may not be ideal for applications requiring flexibility or elasticity.
